WHAT IS IT ABOUT?
Firewalls are a series of independent internal intrusion detectors that use unique technology to protect doors, windows, walls and glass surfaces from burglary attempts.
WHERE TO JOIN?
Depending on the model, SPC PRO detectors are used on doors, windows, skylights, glass surfaces and various types of walls, including masonry and reinforced concrete walls.
HOW DOES THIS WORK?
Firewall seismic and shock detectors detect impacts and vibrations caused by attempts to force, breach or drill into the protected structure. They use two different sensing elements: a PIEZO transducer and a MEMS accelerometer. The signals received by each transducer are combined and processed using intelligent adaptive algorithms: such algorithms enhance the key advantages of both technologies to ensure maximum reliability in any application.
WHAT IS IT MADE OF?
The system consists of five detectors: two for doors and windows (each of which is available in a version with and without magnetic contact), two for walls and one for glass surfaces. The four independent detectors do not need a separate processing board and can be directly connected to any control panel.
THE MOST IMPORTANT ADVANTAGE
Available in detectors that protect doors, windows and walls, the DSF dual-technology technology represents DEA Security's most significant innovation, introducing the SPC PRO among the most modern intrusion detection systems.
In fact, relying on two different signal sources combined and processed by intelligent algorithms allows the new sensors to adapt to different applications and perform in an unparalleled way.
HOW DOES THIS WORK?
Firewall seismic and shock detectors detect impacts and vibrations caused by attempts to force, breach or drill into the protected structure. They use two different sensing elements: a PIEZO transducer and a MEMS accelerometer. The signals received by each transducer are combined and processed using intelligent adaptive algorithms: such algorithms enhance the key advantages of both technologies to ensure maximum reliability in any application.
WHAT IS IT MADE OF?
The system consists of five detectors: two for doors and windows (each of which is available in a version with and without magnetic contact), two for walls and one for glass surfaces. The four independent detectors do not need a separate processing board and can be directly connected to any control panel.
THE MOST IMPORTANT ADVANTAGE
Available in detectors that protect doors, windows and walls, the DSF dual-technology technology represents DEA Security's most significant innovation, introducing the SPC PRO among the most modern intrusion detection systems.
In fact, relying on two different signal sources combined and processed by intelligent algorithms allows the new sensors to adapt to different applications and perform in an unparalleled way.
KEY BENEFITS
DEA Sensor Fusion technology
The new DSF technology developed by DEA Security combines all the advantages of a traditional Piezoelectric transducer with the advantages of a MEMS accelerometer in one seismic sensor. The result is a detector with the highest performance.
Smart analysis
The powerful CPU integrated into the detectors can execute sophisticated algorithms to distinguish between different attacks against the protected structure: theft (low-level attacks), breaking (brutal attacks), breaking (single severe attacks) and continuous vibrations (by cutting or drilling). power tools).
High performance digital filters
All SPC PRO detector models use a DSP microcontroller for digital signal processing and high-performance filters.
There is no placement limit
All SPC PRO detectors can be installed in any plane and orientation, providing maximum installation flexibility.
DETECTORS

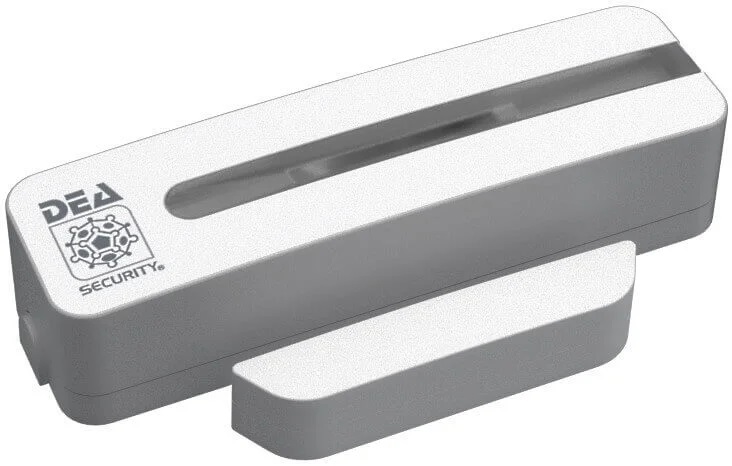

SN-SPCP-FDR1(M) FOR DOORS AND WINDOWS
The SN-SPCP-FDR1M shock detector protects doors, windows, skylights and related glass surfaces from theft, breaking, drilling and opening. It uses signaling devices for sensor removal, unlocking and magnetic masking attempts. A non-magnetic model (part number SN-SPCP-FDR1) is also available.
Calibration and configuration of the detector is easily done through a special application for iOS and Android. Through the application, you can select one of the three default EN 50131-2-8 calibrations, or add parameters related to one of the attack modes (opening, extraction and cutting/drilling) or sensor operation.
KEY BENEFITS
- Calibration and configuration via Wi-Fi mobile app
- Magnetic contact with anti-masking technology (FDR1M version)
- A device that detects case opening and magnetic interference events
- Anti-removal device that detects removal of the sensor from the structure
- Easy calibration by build type and advanced individual calibration
- Multi-color LED for alarm and configuration activities
SN-SPCP-FDR1 has Safety Level 3 and Environmental Class II certification of EN 50131-2-8 standard.
SN-SPCP-FDR1M has Safety Level 3 and Environmental Class II certification of EN 50131-2-8 e EN 50131-2-6 standard.
IMQ-Sistemi di alarme certification (IMQ is the most important certification body in Italy and one of the best players in Europe in the field of conformity assessment).
SN-SPCP-FDR2(M) FOR DOORS AND WINDOWS
SN-SPCP-FDR2M shock detector protects doors and windows from theft, breaking, drilling and opening. It uses intrusion devices to extract the signal and the sensor's attempts to open the box.
Unlike the FDR1 model, the calibration and configuration of the detector is carried out through DIP switches, through which it is possible to select one of the three standard calibrations according to EN 50131-2-8 (window, wood and concrete) or specify the settings for single attack modes (burglary, burglary and cutting/drilling) or related to sensor operation.
KEY BENEFITS
- Calibration and configuration via DIP switches
- Anti-opening magnetic contact (FDR2M version)
- Anti-removal device that detects removal of the sensor from the structure
- Sensor box opening detection device
- Simplified calibration and individual calibration by structure type
- Multi-color LED for alarm and configuration activities
SN-SPCP-FDR2 has Safety Level 3 and Environmental Class II certification of EN 50131-2-8 standard.
SN-SPCP-FDR2M is certified to EN 50131-2-8 Safety Level 3 and Environment Class II and EN 50131-2-6 Safety Level 2 and Environment Class II.
IMQ-Sistemi di alarme certification (IMQ is the most important certification body in Italy and one of the best players in Europe in the field of conformity assessment).

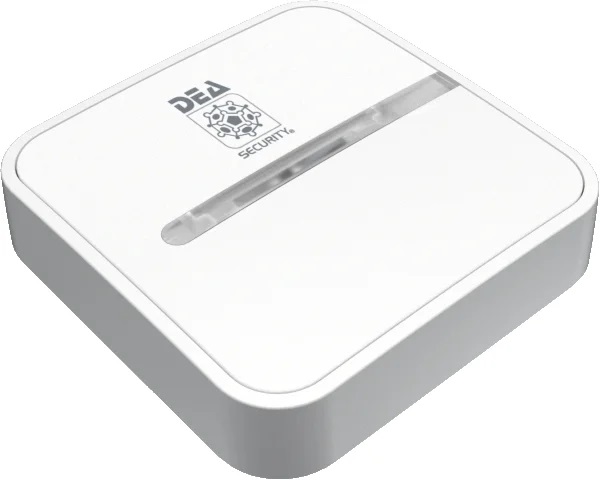

SN-SPCP-FWL1 FOR WALLS AND FLOOR INSTALLATIONS
The SN-SPCP-FWL1 seismic and shock detector protects walls and armored structures from breaking, breaking and drilling. It can be applied to a variety of wall types including flooring, tuff, reinforced concrete walls and metal (such as vaults, safes and security cabinets). In the detector, interference devices are used to extract the signal for the removal, opening and thermal manipulation of the sensor.
Calibration and configuration of the detector is easily done through a special mobile application for iOS and Android. Through the app, you can choose three preset calibrations according to EN50131-2-8 (window, wood and concrete) or five custom presets, each optimized for a different type of structure: hollow brick, reinforced concrete, tuff, safes and safety lockers. It is also possible to interfere with parameters related to individual attack modes for each preset (break, pierce and drill).
KEY BENEFITS
- Calibration and configuration via Wi-Fi mobile application
- Protection of any type of masonry and reinforced concrete wall
- Thermal intervention device
- Sensor anti-removal and unlock tampering
- Cable entry on all sides and internal compartment available for cable routing
- Simplified calibration or advanced individual calibration according to the type of structure
- Periodic functional self-test
- Operational test on external command from alarm control panel
- Multi-color LED for alarm and configuration activities
The SN-SPCP-FWL1 is certified to EN 50131-2-8 Safety Level 3 and Environmental Class II.
SN-SPCP-FWL2 FOR WALLS AND FLOOR INSTALLATIONS
The SN-SPCP-FWL2 seismic and impact detector protects walls and armored structures from breaking, breaking and drilling. It can be applied to a variety of wall types including flooring, tuff, reinforced concrete walls and metal (such as vaults, safes and security cabinets). In the detector, interference devices are used to extract the signal for the removal, opening and thermal manipulation of the sensor.
Calibration and configuration of the detector is done via DIP switches, through which it is possible to select three preset calibrations according to EN50131-2-8 (window, wood and concrete) or five additional presets, each optimized for a different type. structure: hollow brick, reinforced concrete, tuff, safes and security cabinets.
KEY BENEFITS
- Calibration and configuration via Wi-Fi mobile application
- Protection of any type of masonry and reinforced concrete wall
- Thermal intervention device
- Sensor anti-removal and unlock tampering
- Cable entry on all sides and internal compartment available for cable routing
- Preset calibrations by build type
- Periodic functional self-test
- Operational test on external command from alarm control panel
- Multi-color LED for alarm and configuration activities
SN-SPCP-FWL2 has Safety Level 3 and Environmental Class II certification of EN 50131-2-8 standard.

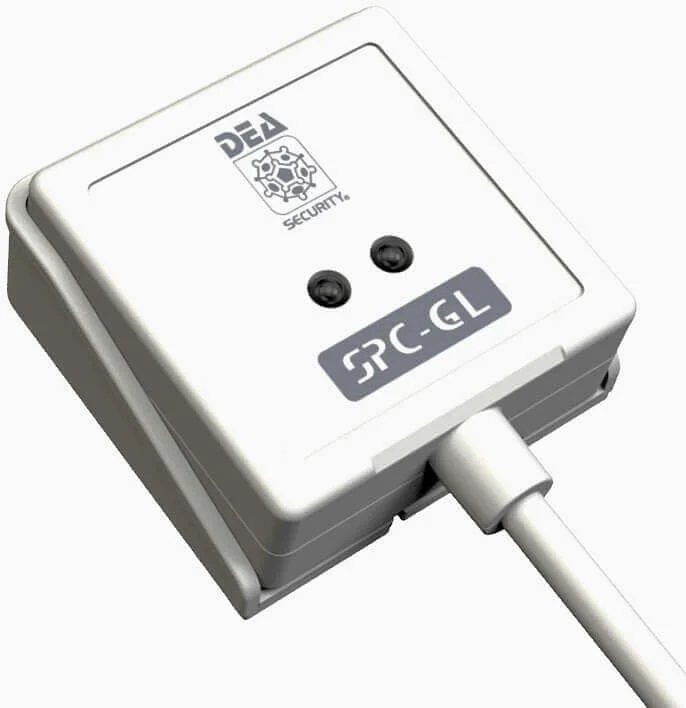

SN-SPC-GL for glass
Equipped with anti-removal interference, magnetic masking and resistor balancing of the output lines, the SN-SPC-GL is the most reliable and comprehensive seismic sensor for detecting glass breaks in doors, windows, glass facades and showcases.
Thanks to four levels of digital sensitivity adjustment, the detector works best on any type of glass, including multilayer and reinforced glass. It can be attached to the glass in any plane and direction using the supplied double-sided adhesive tape. Malicious or accidental removal of the sensor is immediately signaled as an intervention signal.
KEY BENEFITS
- Calibration via DIP switches
- Compatible with any type of glass
- Anti-dismantling device that detects the removal of the sensor from the glass
- Automatic recovery after alarm
- Simplified calibration in 4 sensitivity levels
- Multi-color LED for alarm and configuration activities
- Very little consumption

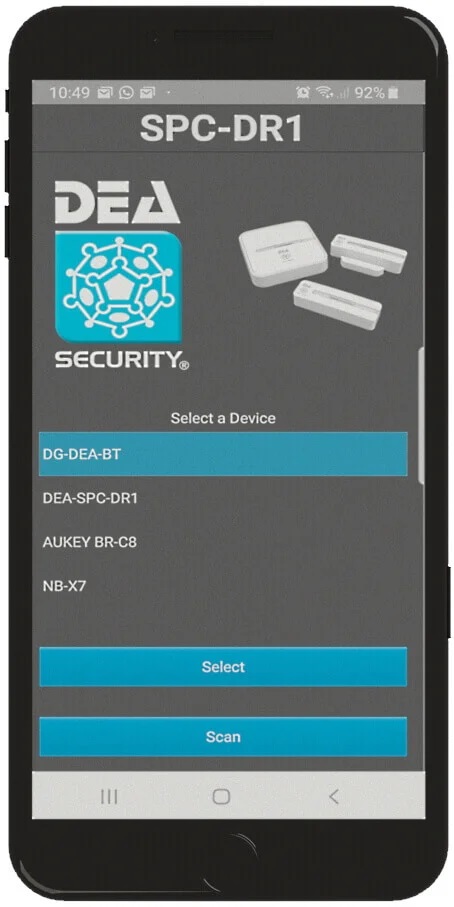

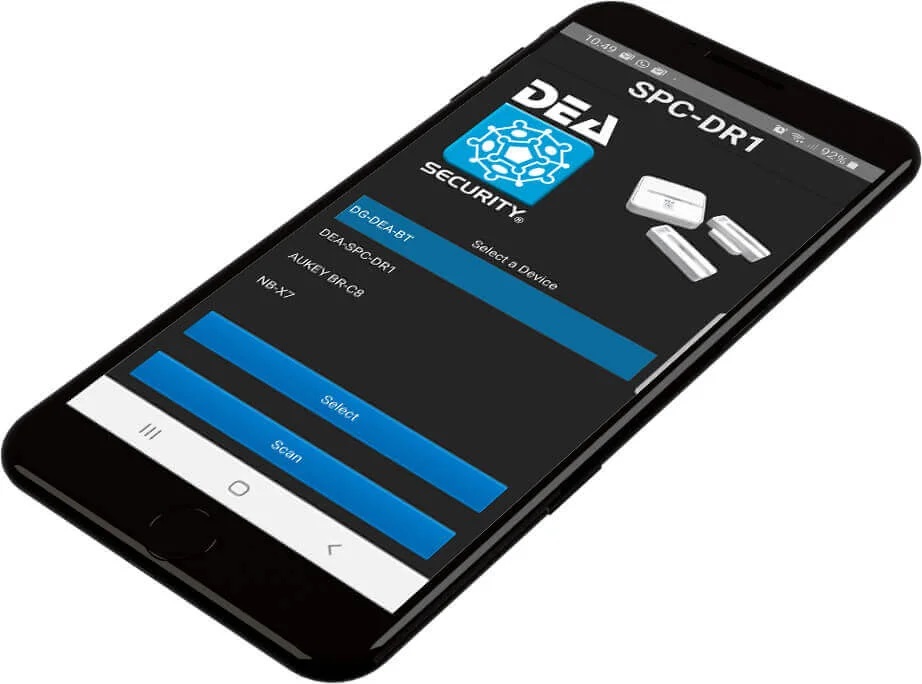

SERVICE APPLICATION
SN-SPCP-FDR1, SN-SPCP-FDR1M and SN-SPCP-FWL detectors are equipped with free downloadable service software for iOS and Android mobile devices; this software allows you to centrally configure and calibrate detectors using a Wi-Fi connection. After connecting, the app automatically recognizes the sensor model and displays the appropriate configuration tools.
More in-depth, referring to the FDR1(M) sensor, you can calibrate the sensor via the app, choosing one of three default configurations (window, wood and concrete according to EN 50131-2-8) or performing a custom calibration. In this latter case, it is possible to create a specific configuration for each type of attack (low attacks, coarse attacks and continuous vibration) and set the following parameters:
- detection sensitivity (also
- can be adjusted to break events);
- the number of events that triggered the alarm;
- event reset time between one count and the next;
- coupling, PIEZO/MEMS ratio coeff.
It is also possible through the application:
- calibrate the magnetic sensor (SN-XS-FDRM sensor only);
- view real-time signal strength and event counts;
- Enable/disable LED status and configure its behavior;
- Recognize a specific alarm event thanks to explanatory graphic icons.
