EQUINOX
The EQUINOX-N Simulator and Diagnostic System sends user-definable and editable NMEA 0183 sentences over user-configurable serial ports and Ethernet TCP, UDP connections. It can generate sentences provided by various navigation devices that produce data according to the NMEA/IEC61162 protocol and send these sentences to one or more receivers. With the capabilities provided by EKINOKS-N, users can easily test their systems and devices and solve many problems they will encounter in the field in advance. The system allows you to virtually create and use all the devices used in navigation systems and to track, record and replay the data that goes between the devices on the map.
Technical Specifications
Highlights
Technical Specifications
- Ability to create the data of each device, choose the sentences to be produced
- Ability to define a separate serial port, communication speed, baud rate for each device
- Ability to define Ethernet TCP/UDP for each device
- Ability to set live simulation for each device
- Ability to set custom TalkerID
- Ability to create custom HDLC data
- Ability to save sent and received data to a file
- Displaying the data that comes with the analyzer and displaying incorrect data
- Coordinated operation of all virtual devices (Start-stop)
- NMEA for general use
- Terminal screen
- Transmitting, receiving and displaying binary data (decimal and hexadecimal)
- User friendly interface
- All device settings can be saved and restored.
- Broadcast and monocast over TCP or UDP.
- TCP/UDP terminal for general use
- High-speed URI-10 interface unit
- Transmission up to 3 Mbaud
- Devices Simulated/Analyzed:
- GPS (GLL, RMC, VTG, ZDA, GGA, GSA, GSV, XTE, RMB, DTM)
- Giro (HDT, HDG, HDM, ROT, TSS1, HRP)
- Magnetic compass
- ECHO Sounder (DPT, DBT, DBK, DBS)
- EM Log (VHW, VLW, VBW)
- Anemometer (MWD, MWV, VWR, VWT, MTW)
- AIS (Class A, Class B vehicles
- Radar (TLL, TTM, OSD)
- Special Devices
Highlights
- Ability to create navigation systems data
- Separate serial port, communication speed, baud rate
- Ethernet TCP/UDP definition for each system
- Ability to set custom TalkerID
- Ability to create custom HDLC data
- Incorrect, missing data, faulty partition isolation with the analyzer
- Ability to monitor NMEA terminal display data
- Transmitting, receiving and displaying binary data
- TCP/UDP terminal for general use

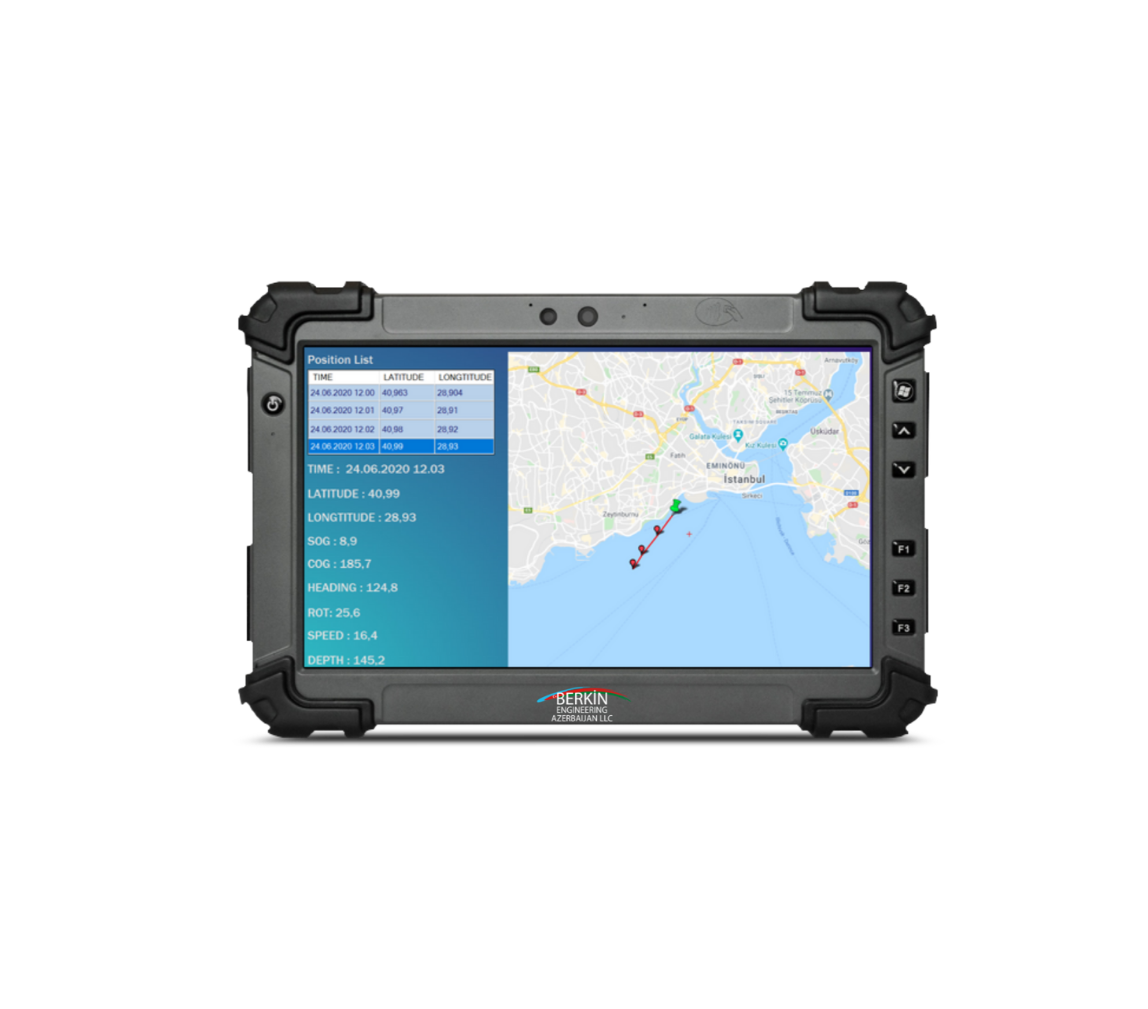

- Interactive map playback and data analysis
