ICING SENSOR
To prevent cold air entering the gas turbines from affecting the turbines, an icing detection sensor located at the turbine inlet measures the temperature and humidity ratio of the air entering the turbines to detect icing.

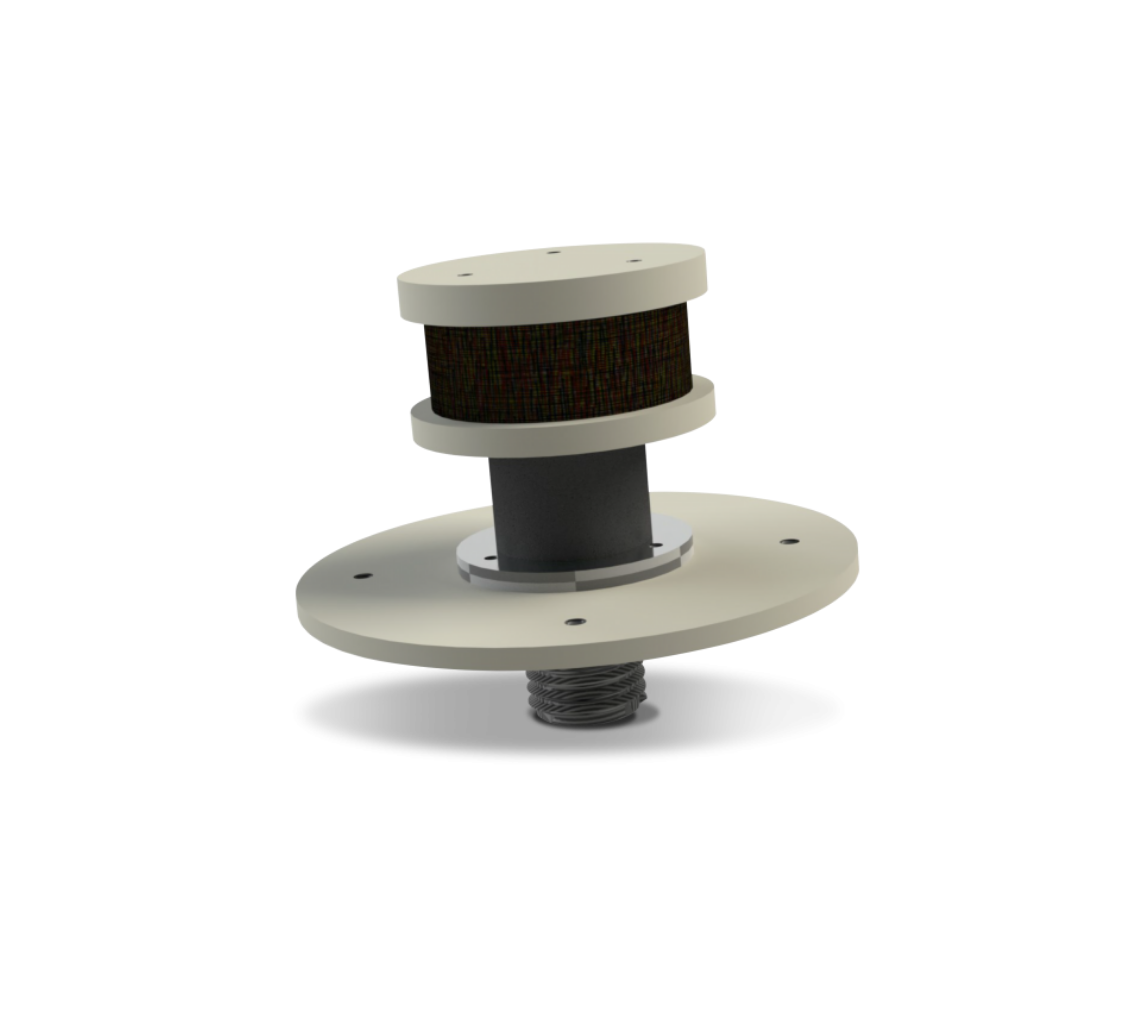

The ice sensor consists of a fully enclosed chamber that can measure ambient temperature and humidity, humidity, a temperature sensor, and a signal amplifier circuit. This camera can easily measure the ambient temperature and humidity while protecting the sensors from external factors.
The output of the humidity sensor is adjusted by a signal amplifier circuit so that it can be processed in a signal conditioner. The signal processed in this circuit is sent to the output of the ice sensor.
Humidity Sensor Settings
Temperature Sensor Settings
Humidity Sensor Settings
- Deployment time: 70ms
- Accuracy: ±3.5% RH
- Operating Humidity Range: 0 – 100 % RH
- Operating Temperature Range: -40°C ~ 85°C
- Supply voltage: 5VDC
Temperature Sensor Settings
- Resistance (25°C): 10,000 Ohm
- Resistance Tolerance: ±20%
- Operating Temperature Range: -60°C ~ 300°C
- Beta: 3669
- Deployment time: 22s

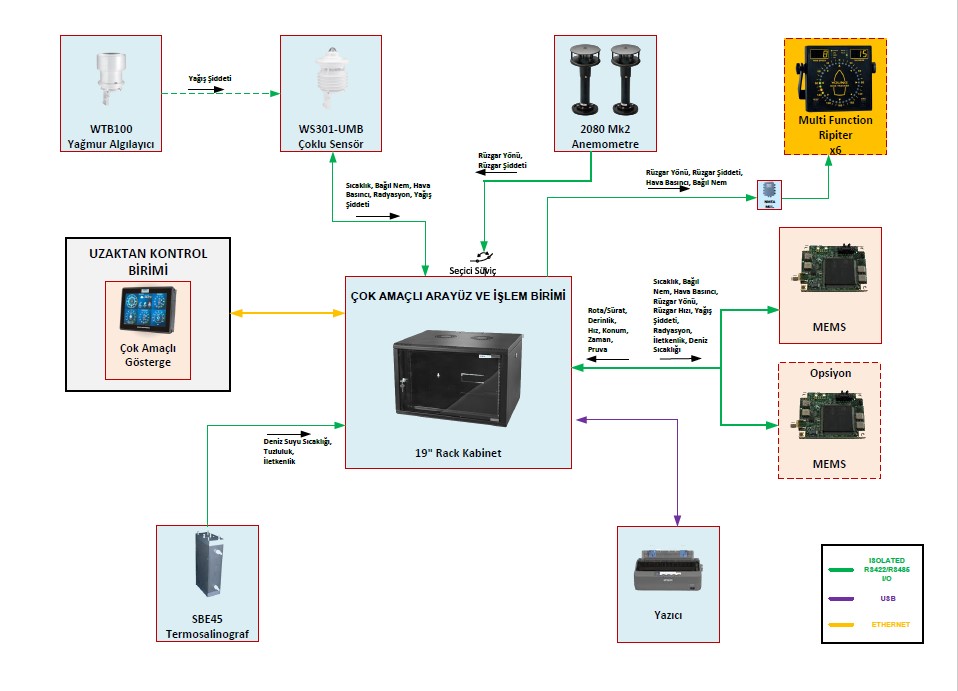

Meteorological Measurement System

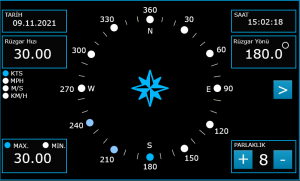

The Meteorological Measurement System provides control of meteorological measurement sensors on board and data communication between them. It displays measured data with its 10.1” touch screen. High-speed full-duplex RS422 is used for communication, ensuring error-free and fast data transmission.
Measured parameters
- Heat
- Relative humidity
- Air pressure
- Radiasiya
- Wind intensity
- Wind direction
- Rainfall intensity
- Amount of rain
- Sea temperature
- Saltiness
- Conductivity
From external sources
parameters
parameters
- Route
- Speed
- Depth
- To hurry
- Location
- Time
- Prof
Externally Calculated
Parameters
Parameters
- Cloud subbase
- True Wind
Rain Screen Sensor
Sea Temperature and Salinity Sensor
Wind speed and direction sensor
Smart Weather Sensor
Rain Screen Sensor
- Accuracy: ±2 %
- Resolution: 0.2
- Max. Intensity: 144 mm/s
Sea Temperature and Salinity Sensor
- Conductivity Accuracy: ± 0.0003 s/m
- Operating pressure range: 34.5 dB(50 psi) max
- Temperature Accuracy: ± 0.002 °C
- Temperature range: -5 to +35 °C
- Flow rate: 10-30 ml/sec (0.16-0.48 gal/min)
- Sampling rate: 1 second to 9 hours of sampling
- Temperature Stability: 0.0002 °C per month
Wind speed and direction sensor
- Wind speed measurement
- Measuring range: 0-120 knots
- Accuracy: ±2 %
- Stability: 0.01 knots
- Wind direction measurement
- Measuring range: 0° – 359°
- Accuracy: ±3°
- Stability: 0.01°
Smart Weather Sensor
- Heat
- Measuring method: NTC
- Measuring Range: -50 … 60 °C
- Accuracy: ±0.2 °C (-20…50 °C) and ±0.5 °C (>-30 °C)
- Relative humidity
- Measurement method: Capacitive
- Measuring range: 0 … 100 % RH
- Accuracy: ±2 % RH
- Air pressure
- Measurement method: MEMS Capacitive
- Measuring Range: 300 … 1200 h
- Pa Accuracy: ±0.5 hPa (0…40 °C)
- Radiasiya
- Response time: (95%): < 18 s
- Measuring range: 2000 W/m²
- Spectral range: 300...2800 nm
