WHAT IS IT ABOUT?
An evolution of the historic range of Security shock sensors, Security is a modern intrusion detection system for protecting doors, windows and other structures against opening, theft, cutting, drilling and events.
WHERE TO JOIN?
Security offers a variety of sensor models specializing in the protection of doors, windows, glass surfaces, burglar bars and walls in residential, commercial and industrial environments.
HOW DOES THIS WORK?
The system uses passive shock seismic sensors without integrated electronics that sense impacts and vibrations caused by tampering attempts, including drilling and cutting events performed with internal drill bits or diamond discs. The sensor for doors and windows is also available in a version equipped with a magnetic contact to detect the opening of the structure.
WHAT IS IT MADE OF?
The system consists of four specialized detectors and a circuit board that controls all the Guard sensors and the Guard sensors thanks to a small passive interface. Calibration and configurations are done through a dedicated service program compatible with most mobile phones currently on the market.
THE MOST IMPORTANT ADVANTAGE
Combining proven Guard detection technology with new essential features such as configuration and calibration via mobile app, native support for star topology and two-conductor balanced sensors.
KEY BENEFITS
One dashboard to rule them all
A single analysis board can handle all Guard sensor models, and mixed use is also allowed. The board is equipped with 4 channels: each channel accepts two sensors of the same type, for a total of 8 sensors.
Special detectors
Thanks to four different detector models, it is possible to protect doors, windows, grills, glass surfaces, walls and ceilings with a single system and a single analysis board.
Simple and tamper-proof wiring
The signal lines are all very balanced and consist of only two unpolarized conductors. Together with the support of "star" topology connections, these features make system wiring simple and tamper-resistant.
Different alarms
The sophisticated analysis board uses a powerful CPU ARM and high-performance digital filters to process the signals detected by the sensors and distinguish between different attacks on the protected structure.
Calibration via smartphone or tablet
System configuration and calibration is performed via a free downloadable service application for iOS and Android mobile devices using a secure Wi-Fi connection.
Made in Italy
All detectors and analysis boards are designed, manufactured and assembled in Italy at DEA Security's premises using high quality components and materials.
SENSORS
FOR DOORS AND WINDOWS
The Sn-SPCP-FDR1M impact detector protects doors, windows, skylights and related glass surfaces from being broken, broken, drilled and opened. It uses tampering devices to signal sensor removal, opening, and magnetic masking attempts. A non-magnetic model is also available (part number sn-SPCP-FDR1).
Calibration and adjustment of the detector is easily done with a special iOS and Android application. Using the application, it is possible to choose between three standard calibrations according to en 50131-2-8 (window, wood and concrete) or to fine-tune parameters related to single attack modes (hack, hack and cut/drill) or sensor operation.
The Sn-A03P-DRM detector, together with the processor board, has a safety class 5013p class II certificate according to en 3-50131-2-6 (IMQ – safety system certificate).
FOR GLASSES

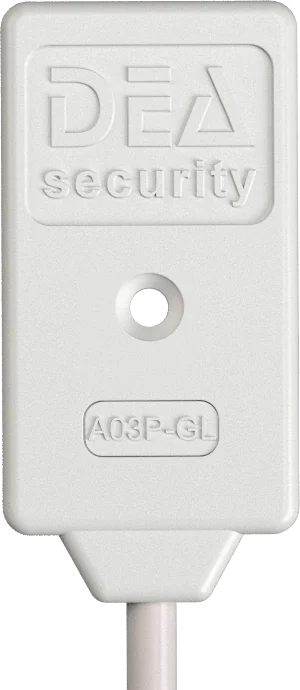

The Sn-A03P-GL sensor protects glass surfaces from chipping, drilling and shattering. Easy and quick to install, the sensor is easily attached to the glass using the included double-sided tape.
One sensor can cover an area of approx. 4 m2.
FOR THE WALLS

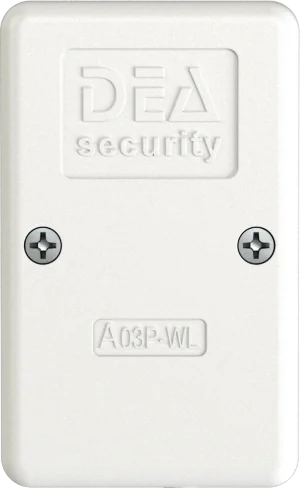

Sn-A03P-VL detector protects walls from drilling and breaking.
In the case of stone walls, a single sensor can cover a beam detection area of 1.5 m, which allows each detector to be installed approximately every 3 m.
The sensor is equipped with an anti-theft device that indicates attempts to remove the sensor from the protected structure.
FOR ROBBERY RESISTANT GRILLS

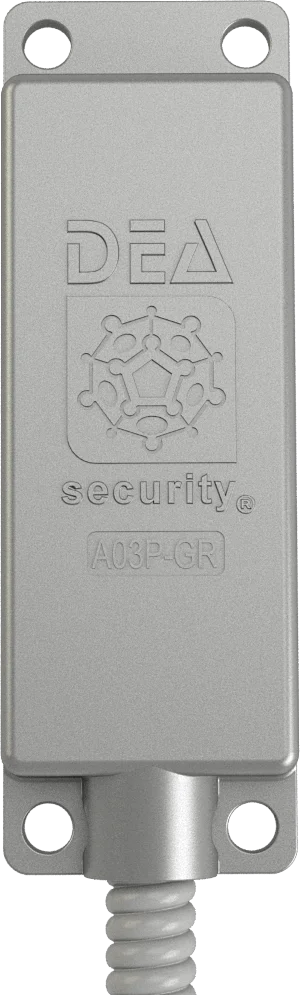

SN-A03P-GR detector protects burglar bars, windows guards and other types of security gratings against cut, break and breakthrough attempts. Designed for outdoor use, the sensor is protected by a metal housing and the connection cable is wrapped by a metal flexible conduit.
ANALYTICAL COMMISSION
Together with a 03 Pro series detectors equipped with magnetic contact (IMQ-System di alarme)

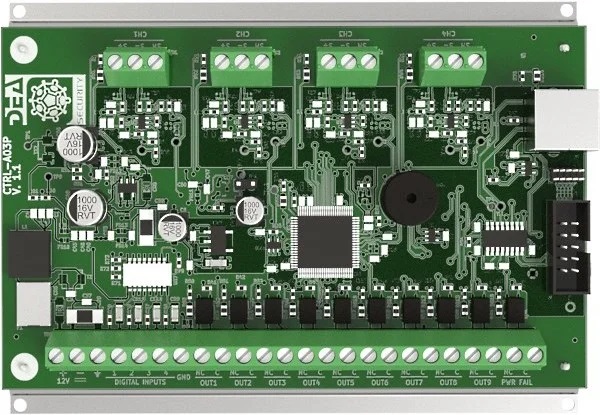

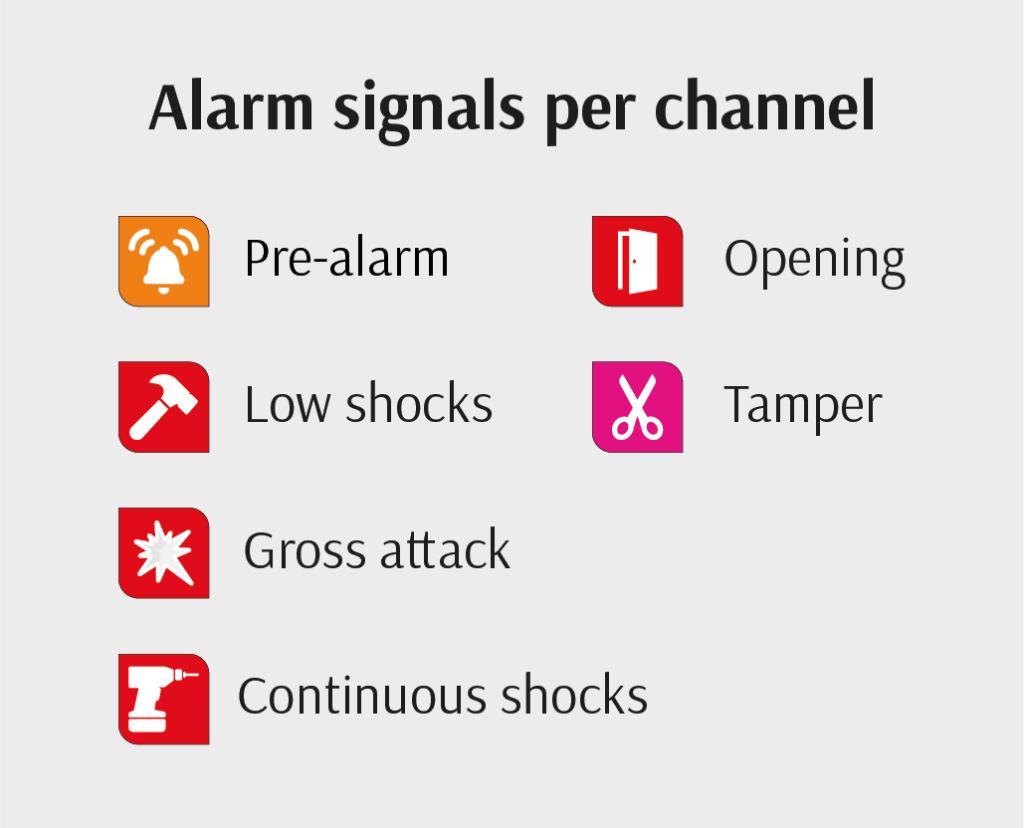

All models of A03 PRO series sensors are controlled by br-A03P-Z4 electronic processor board. This is a multi-zone digital analytical board that uses high-efficiency filters (if any) to process signals from detectors and generate emergency situations. Alarms differ depending on the type of attack within the respective service application:
- in advance;
- blow (weak blows);
- Breakout (rough kicks);
- drilling / cutting (continuous blows).
The board also gives two other important signals:
- opening the sensor (removing the cable, cutting it);
- power outage.
BR-A03P-Z4 is equipped with 4 communication channels: 2 sensors of the same type can be connected to each channel, 8 sensors in total. Such an architecture facilitates the implementation of signal zones consisting of one or two sensors installed in one design. Thus, we can accurately identify the alarm while maintaining the advantages provided by passive sensors.

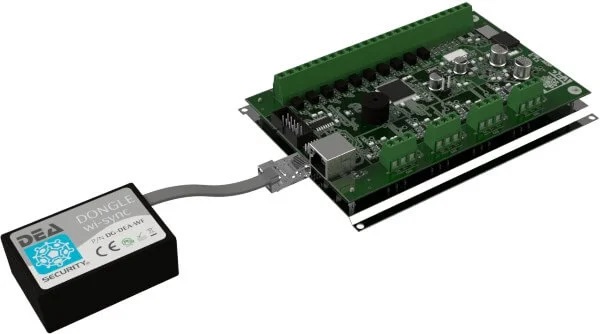

10 solid state CNC outputs (4 shock/break alarm outputs, 4 opening alarm outputs, general tamper alarm, power failure alarm) are also available to connect the system to the alarm Control Panel. To configure and calibrate the board, you need the DG-DEA-VF switch and the appropriate service software for mobile devices.
SERVICE APPLICATION
Sn-SPCP-FDR1, SN-SPCP-FDR1M and SN-SPCP-FVL detectors are equipped with free downloadable service software for iOS and Android mobile devices; This software allows you to centrally configure and calibrate detectors using a Wi-Fi connection. Once connected, the app automatically recognizes the sensor model and displays the appropriate installation tools.
As for the Fdr1(M) sensor, you can calibrate the sensor by choosing one of three standard configurations (window, wood and concrete according to EN 50131-2-8 standard) or by performing a custom calibration using the app. In this latter case, a custom configuration can be created and the following parameters can be set for each type of attack (weak attacks, coarse attacks and continuous vibrations):
- detection sensitivity (can also be customized for breaking events);
- the number of alarming events;
- event resets the time between one count and the next;
- contact, piezo / MEMS ratio.
With the app you can also:
- calibrate the magnetic sensor (sn-XS-FDRM sensor only);
- View Real-Time signal strength and event calculation;
- enable/disable status light and adjust its behavior;
- recognize a specific anxiety event thanks to visual graphic icons.
TİPİK SİSTEM SXEMİ
