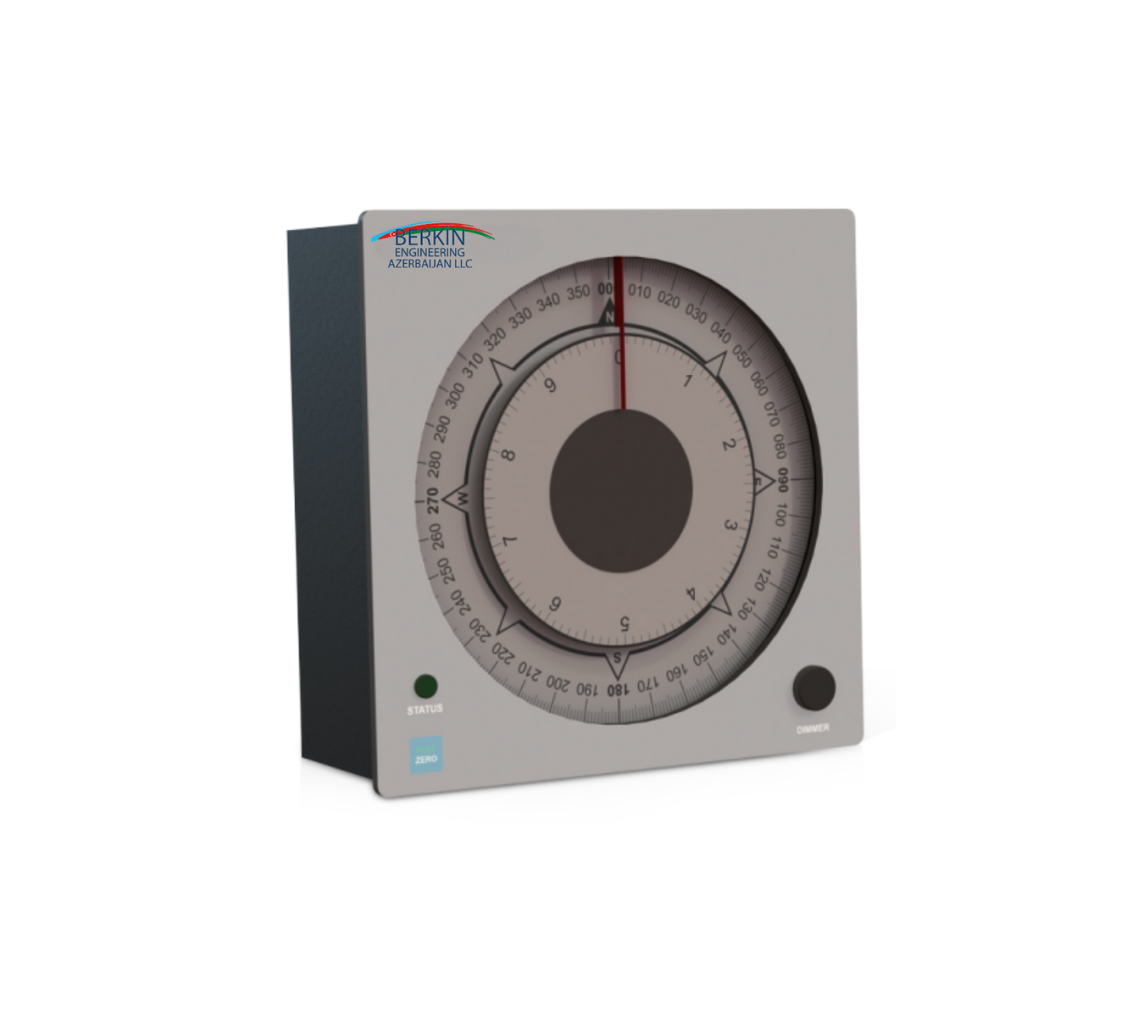

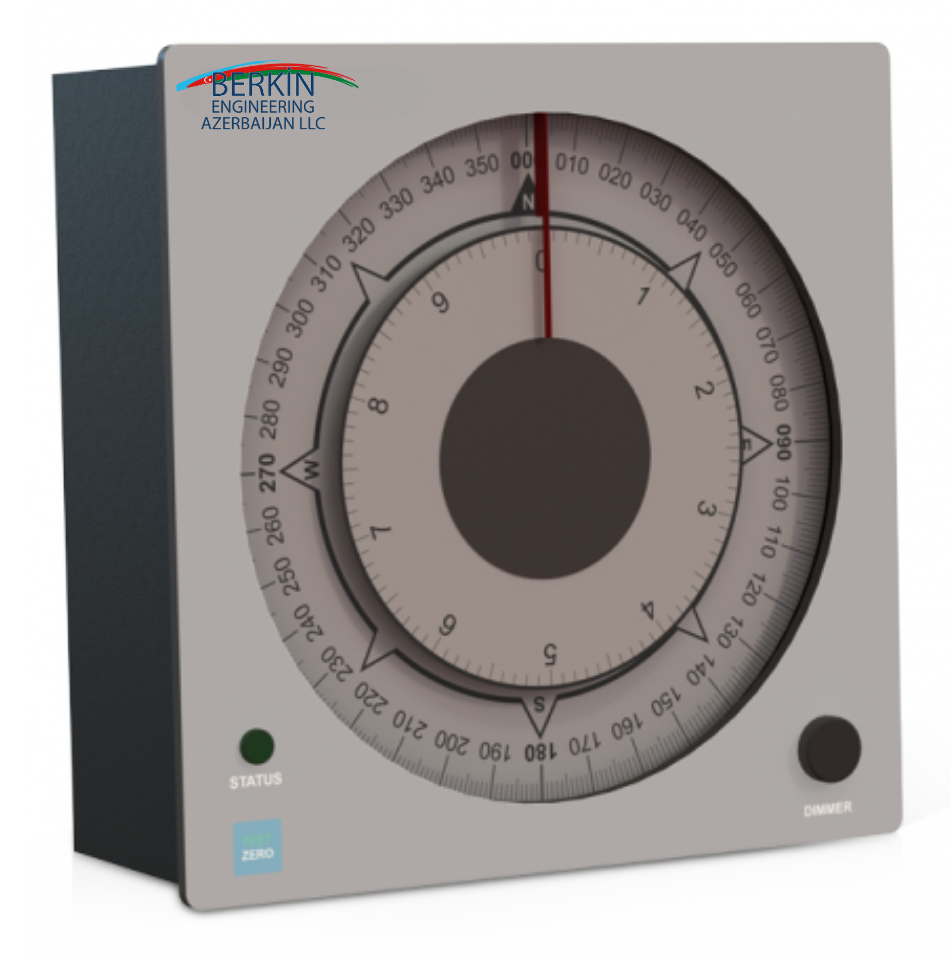

SHR-220
Technical Specifications
Highlights
Technical Specifications
- Weight: 3.5 kg
- Dimensions (WxHxD): 200 x 200 x 122 mm
- Plate thickness: 2 mm
- Connections: 1×15 pin D-sup data cable
- Material: Aluminum alloy body
- Color: RAL9005
- Performance: ± 0.5 ° accuracy
- Tracking rate: >20° /sec
- Gimbal Angle: –
- Display: Rotating compass card dial display
- Route LEDs: Blue = True Bearing Yellow = Magnetic Bearing
- Resolution: The external scale is marked as 1°, 5°, 10° and 45°. 0.1° and 1° are marked on the internal scale
- Dial Illumination: LED array red color with local and remote dimming control
- Supply voltage: 24 VDC (9-36 VDC)
- Power consumption: 4 W
- Data Protocol: RS-485/RS422; NMEA0183, 12 Mbps
- Data Sentences: THS, HDT, HDG, HDM
- Operating Temperature Range: -15°C ~ +55°C
- RoHS: Compliant
Highlights
- Automatic Baudrate selection
- Original and magnetic source indicator
- Using console type
- Easy installation

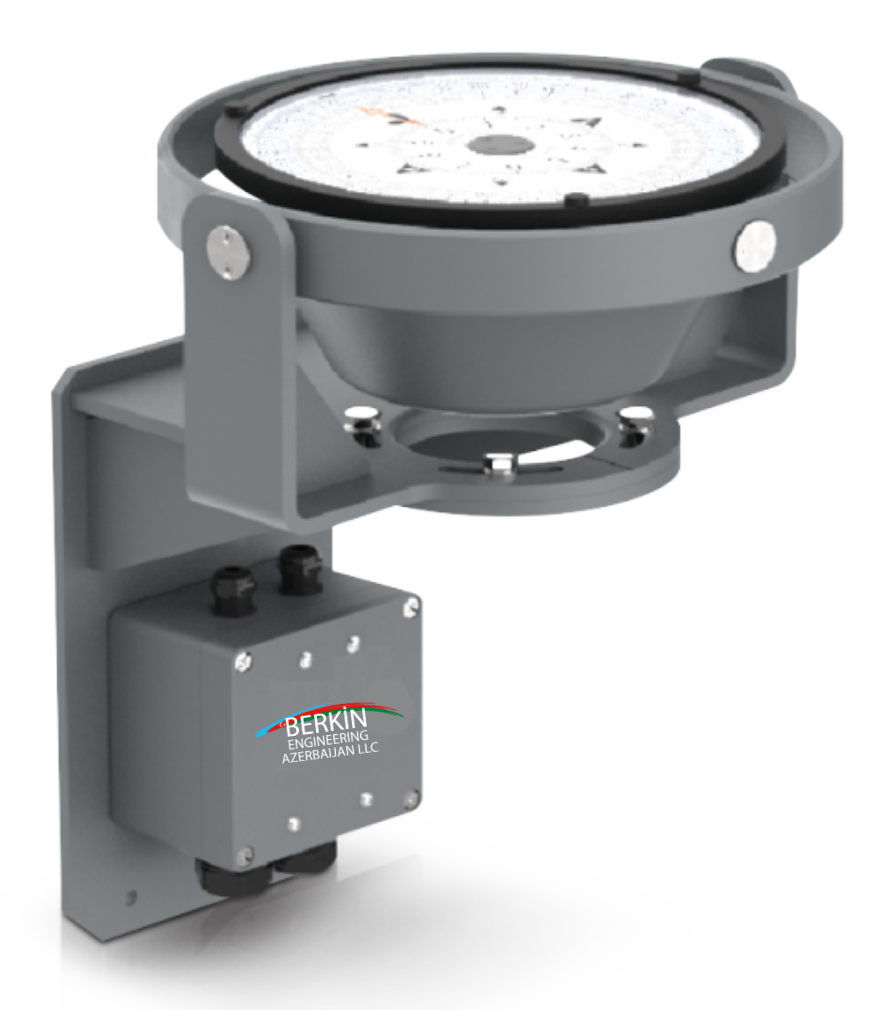

BHR-246
Technical Specifications
Highlights
Technical Specifications
- Weight: 10.5 kg
- Dimensions (WxHxD): 464 x 325 x 348 mm
- Plate thickness: 8 mm
- Connections: Integrated terminal box
- Material: Marine grade aluminum, stainless fasteners
- Color: RAL7040
- Performance: ± 0.01° resolution
- Tracking rate: 20°/sec
- Gimbal angle: ±45° pitch and roll
- Display: Dual scale 36:1 rotating display
- Route LEDs: Blue = True Bearing Yellow = Magnetic Bearing
- Resolution: The external scale is marked as 1°, 5°, 10° and 45°. 0.1° and 1° are marked on the internal scale
- Dial Illumination: LED array red color with local and remote dimming control
- Supply voltage: 24 VDC (9-36 VDC)
- Power consumption: 4 W
- Data Protocol: RS-485/RS422; NMEA0183, 12 Mbps
- Data Sentences: THS, HDT, HDG, HDM
- Operating Temperature Range: 25°C ~ +55°C
- RoHS: Compliant
Highlights
- Two scale 36:1 rotating dial
- RS-485/RS-422 NMEA 0183 Protocol Support
- Aluminum body
- Brightness adjustment
- Fully sealed and weatherproof
- Bearing repeater, gimbal mount feature
ART-144
Technical Specifications
Highlights
Technical Specifications
- Clean and Easy-to-Read Dial Display
- Rotation speed 30°/min
- Panel or partition mounted
- Touch the controls
- Local and Remote Blackout Management
- Automatic detection of previously lost data
- Digital NMEA 0183
Highlights
- Automatic warning of the lost valid rate of return data
- Automatic detection of previously lost rate of return data without a reset is required
- Local and Remote dimming control
